  Awarta Well and boosters station

A complete control system to control and monitor the entire station, the station is consisting three boosters, balancing tank and diesel generator as backup for the power supply, all the station variables from the different sensors like:

  • Pressure transducers.
  • Level transducers.
  • Flow meters.
  • Temperature sensors.

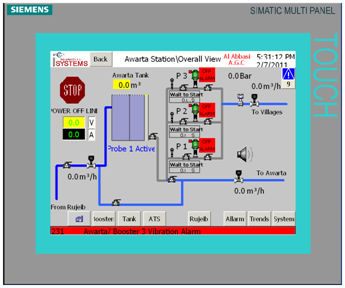

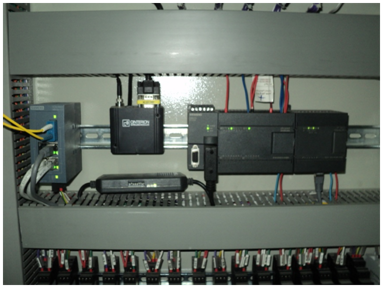

All components are connected to the main controller a SIEMENS S7-300 PLC, in addition to a 10” touch panel programmed for operator interfacing so as he can easily monitor and control the station.

The system is designed to communicate with Rujieb station which is 5 Km away using fiber optics technology.

Image 366


Image 367
